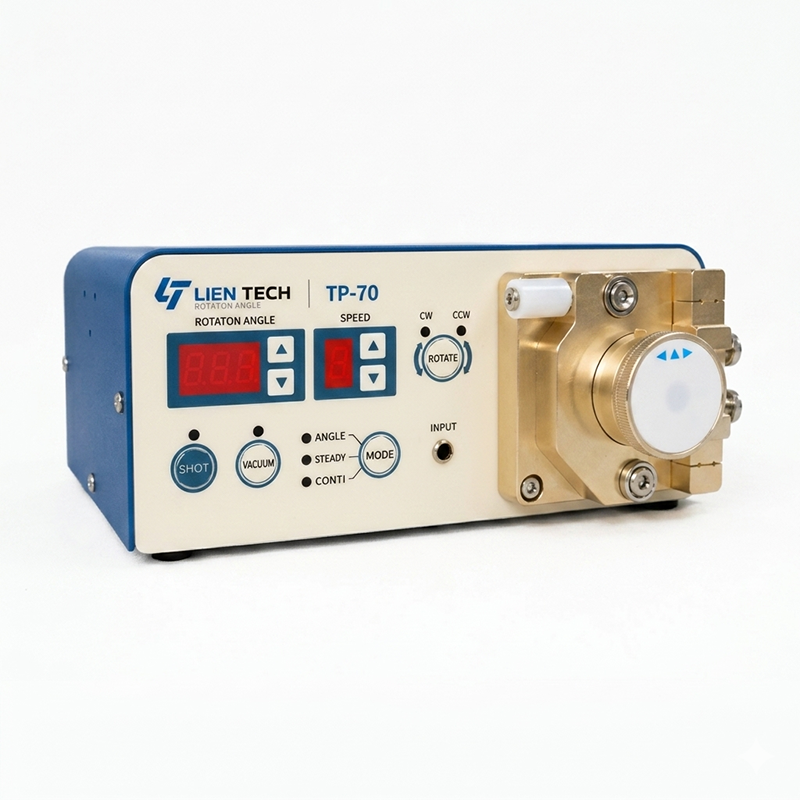

TP-70 Tubing Pump (튜빙 펌퍼)

TP-70 Tubing Pump (튜빙 펌퍼)

특징 및 장점 (Features & Benefits)

  • 혐기성 접착제에 최적화
    혐기성 재료, 순간접착제, 잉크 및 다양한 저점도 유체를 정밀하고 안정적으로 토출할 수 있습니다.
  • 안정적인 AIR-FREE 디스펜싱
    압축공기가 필요하지 않아 설비 구성이 간단하며, 깨끗하고 안정적인 토출이 가능합니다.
  • 우수한 정밀도와 긴 소모품 수명.
    롤링 접촉 방식(Rolling Contact Mechanism)을 적용하여 마찰을 최소화하고, 장시간 튜브를 사용 하는데 있어 문제가 없습니다.
  • 컴팩트한 설계와 간편한 유지보수
    단순하고 견고한 구조로 설계되어 유지보수가 쉽고, 산업 현장에서 안정적으로 사용할 수 있습니다.
Enquire Now

Specification

TP-70

Mode

Rotation Angle Type / Manual Mode

Min Dot

0.0001 cc (Φ0.3 ~ Φ0.8)

Speed

0 ~ 160 RPM

Time / Gelatinize Rolling

0 ~ 999°

Rolling / Back Rolling

1 ~ 9999°

Viscosity

0 ~ 5,000 cps

Dimension (mm)

177W × 169.5D × 83H

Voltage

AC220V / 110V, 50/60Hz

Weight

3.5 KG
