Barrel (Syringe)

Application For Epoxy & Silicone Adhesive

Syringe barrels for low-temperature epoxy adhesive/one-component silica gel

Low temperature epoxy adhesive / one-component silicone has a curing mode of heat curing or natural curing, it is sensitive to temperature, so it needs to be stored at low temperature. Usually the storage temperature should be about -20°C. And some special low-temperature epoxy adhesives are more sensitive to temperature, must be placed close to dry ice during transportation. At this time the tempera- ture may reach -40°C. In addition, fast curing low temperature epoxy adhesive usually has a large viscosi- ty, has a higher requirment on the piston while dispensing, otherwise “jump plug” will easiler accur, resulting in “empty point”, “broken glue “, “residual” and other issues.

Product advantage

  • Advantage one: The use of low-temperature resistant and explosion-proof material, the lowest can withstand -40°C.
  • Advantage two: No bursting of the tube when it falls from 1.2m height.
  • Advantage three: The syringe adopts non-taper design, and there are special pistons for different viscosi- ty of glue, which can achieve "no jumping plug", "no dripping glue" and "less residue".

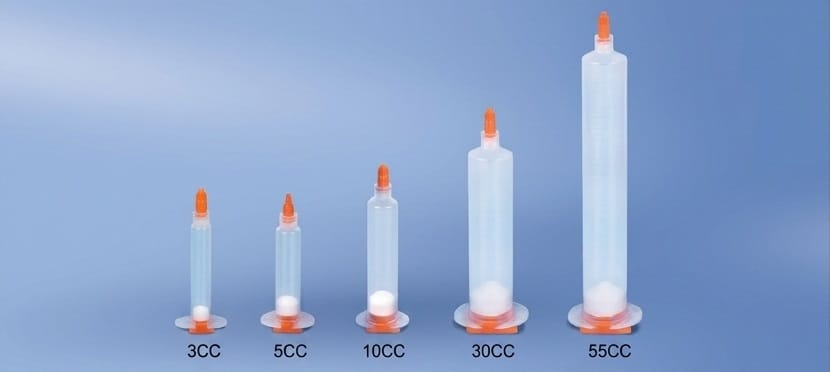

US Type I Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc010101Transparent73.8mm9.6mm11.6mm2.6g
5cc010201Transparent69.8mm12.5mm14.9mm3.6g
10cc010301Transparent90.7mm15.7mm18.6mm6.3g
30cc010401Transparent117.8mm22.5mm25.7mm12.9g
55cc012201Transparent177.3mm22.3mm25.7mm20g
US Type I Syringe barrels

Note: The external dimensions in the brochure are for reference only, should consider the actual dimensions when using the product.

US Type II Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc-B010501Transparent74.2mm9.4mm11.6mm2.7g
5cc-B010601Transparent70.2mm12.5mm14.6mm3.1g
10cc-B010701Transparent91.4mm15.6mm18.5mm6.2g
30cc-B010801Transparent118.5mm22.3mm25.1mm10.8g
50cc-B012401Transparent176mm22.3mm25.6mm19g
55cc-B010901Transparent183.4mm22.3mm25.6mm19.5g

Japanese Syringe Barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
10cc-M011001Transparent105.3mm15.6mm18.3mm6.6g
30cc-M011101Transparent129.3mm23mm25.9mm13g
30cc-I011203Transparent129.7mm22.9mm25.9mm14.3g

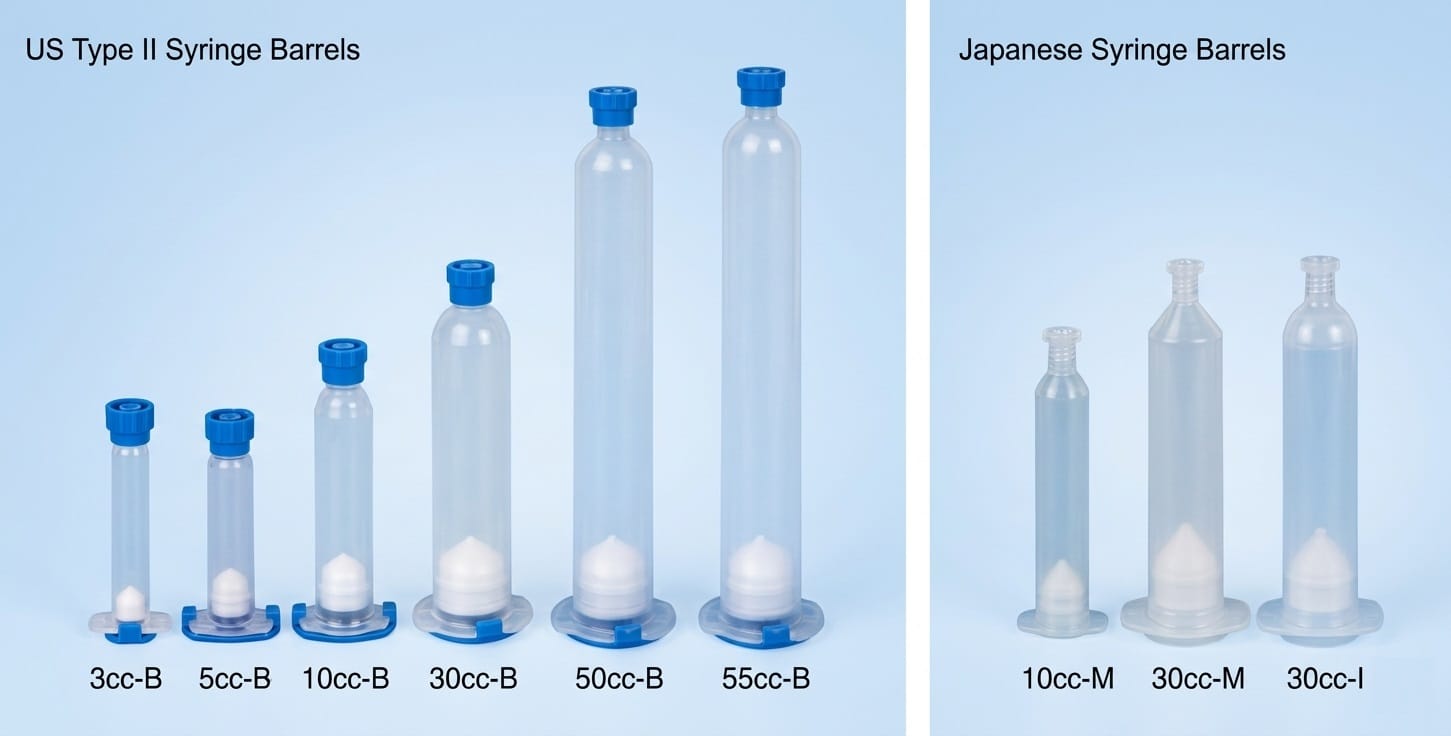

US Type II Japanese Syringe Barrels

UV adhesive

UV Syringe Barrels for Adhesive

UV adhesive usually refers to UV curing adhesive, the curing mode is UV illumination curing, sensitive to UV light, requires the syringe to have good filtration of UV light. In addition, the viscosity range relatively wide, required different looseness and tightness of the piston for dispensing. Finally the cleanliness requirements for syringes and their accessories are also rather high, e.g. in optical applications.

Product advantage

  • Advantage One: special anti-ultraviolet material, good filtration of ultraviolet light, up to 99.97%.
  • Advantage Two: we use a variety of different elasticity of the piston, enable dispensing of glue to achieve "no jump plug", "no dripping", "less residue".
  • Advantage Three: cleanliness, the existing 1000 square meters of clean workshop production, ion wind gun and washing to ensure the cleanliness of the syringe.

US Type I Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc010102Black73.8mm9.6mm11.6mm2.6g
010103Amber
5cc010202Black69.8mm12.5mm14.9mm3.6g
010203Amber
10cc010302Black90.7mm15.7mm18.6mm6.3g
010303Amber
30cc010403Black117.8mm22.5mm25.7mm12.9g
010404Amber
55cc012203Black177.3mm22.3mm25.7mm20g
012202Amber
UV Syringe Barrels for Adhesive

US Type II Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc-B010502Black74mm9.5mm11.6mm2.7g
010503Amber74.2mm9.5mm11.6mm2.5g
5cc-B010602Black70.2mm12.5mm14.6mm3.1g
010603Amber
10cc-B010702Black91.4mm15.6mm18.5mm6.2g
010703Amber
30cc-B010804Black118.5mm22.3mm25.1mm10.8g
010805Amber118.5mm22.3mm25.0mm10.8g
50cc-B012402Black176mm22.3mm25.6mm19g
012403Amber
55cc-B010905Black183.8mm22.3mm25.7mm21g
010906Amber183.4mm22.3mm25.6mm19.5g



US Type II Syringe barrels

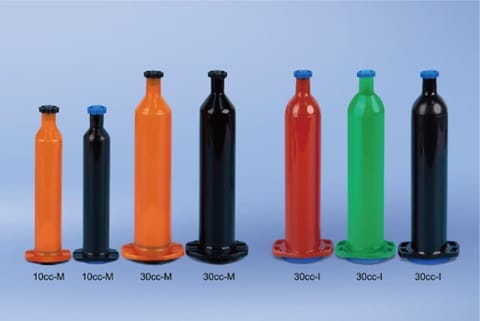

Japanese Syringe Barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
10cc-M011003Orange105.3mm15.6mm18.4mm6.8g
011002Black
30cc-M011103Orange129.3mm22.9mm25.8mm12.8g
011102Black129.3mm22.9mm25.8mm13g
30cc-I011306Amber129.7mm22.9mm25.9mm14.3g
011205Green
011204Black
Japanese Syringe Barrels

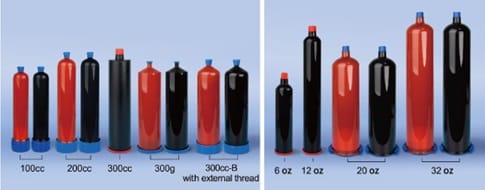

Cartridges

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
100cc012101Amber191.5mm31.8mm37.1mm48g
——Black
200cc012602Amber230.9mm40mm44.4mm61.6g
——Black
300cc011902Black230.5mm47.2mm50.5mm51.3g
300g011501Amber206mm50.4mm53.8mm48.5g
011502Black
300cc-B
with external thread		012903Amber200.5mm49.9mm54.5mm68g
012902Black
6 oz011706Black178.3mm40.2mm43mm27.3g
12 oz011803Black310.5mm39.7mm42.7mm53g
20 oz013103Amber251.5mm65.2mm68.5mm86.6g
013102Black
32 oz011601Amber348.5mm65.2mm68.5mm110.5g
011602Black
Cartridges

Solder Paste & Silver Glue

Syringe barrels for solder paste and silver glue

The storage temperature of solder paste for paving process is usually around -5℃, due to the high density of the paste , under such temperature, the syringe is required to be able to withstand a greater impact force and “no burst tube”. For the dispensing process with the solder paste / silver glue, based on above conditions, also requires the dispensing piston “does not jump plug”, minimize the residue as much as possible.

Product advantage

  • Advantage One: No "burst tube" when stored for a long time at temperatures below -40℃.
  • Advantage Two: We also developed the "anti-scraper piston" and "reinforced piston" according to the features of the solder paste/silver glue, which means that the total amount of residue can be greatly reduced without waste, under the premise that the piston "does not jump out of the plug" when dispensing.

Dispensing (U.S. Type I Syringe barrels)

ModelMaterial No.ColorLengthInner diameterOuter diameterWeightMaximum load
of solder paste
3cc010101Transparent73.8mm9.6mm11.6mm2.6g10g
5cc010201Transparent69.8mm12.5mm14.9mm3.6g15g
10cc010301Transparent90.7mm15.7mm18.6mm6.3g30g
30cc010401Transparent117.8mm22.5mm25.7mm12.9g100g
55cc012201Transparent177.3mm22.3mm25.7mm20g200g



Syringe barrels for solder paste and silver glue

Dispensing (U.S. Type II Syringe barrels)

ModelMaterial No.ColorLengthInner diameterOuter diameterWeightMaximum load
of solder paste
3cc-B010501Transparent74.2mm9.4mm11.6mm2.7g10g
5cc-B010601Transparent70.2mm12.5mm14.6mm3.1g15g
10cc-B010701Transparent91.4mm15.6mm18.5mm6.2g30g
30cc-B010801Transparent118.5mm22.3mm25.1mm10.8g100g
50cc-B012401Transparent176mm22.3mm25.6mm19g150g
55cc-B010901Transparent183.4mm22.3mm25.6mm19.5g200g

Printing (Cartridges)

ModelMaterial No.ColorLengthInner diameterOuter diameterWeightMaximum load
of solder paste
6 oz011701Opaline178.3mm40.2mm43mm27.3g500g
12 oz011801Opaline310mm39.7mm42.7mm52.5g1kg
Printing (Cartridges)

Thermally Conductive Adhesives

Syringe barrels for thermally conductive adhesives

Thermally conductive adhesive is usually made of silicone composite thermally conductive material with high viscosity and high specific gravity. Therefore, more air pressure is needed to ensure better dispensing efficiency. It will leads to high strength requirements for the syringe, and high requirements for the piston and syringe coordination when dispensing.

Product advantage

  • Advantage One: No "burst tube" when stored for a long time at temperatures below -40℃.
  • Advantage Two: Provide a special piston specialized for high-viscosity heat-conductive adhesive, can reduce the "jump plug", and reduce residue.

US Type I Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
10cc010301Transparent90.7mm15.7mm18.6mm6.3g
30cc010401Transparent117.8mm22.5mm25.7mm12.9g
55cc012201Transparent177.3mm22.3mm25.7mm20g

US Type II Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
10cc-B010701Transparent91.4mm15.6mm18.5mm6.2g
30cc-B010801Transparent118.5mm22.3mm25.1mm10.8g
50cc-B012401Transparent176mm22.3mm25.6mm19g
55cc-B010901Transparent183.4mm22.3mm25.6mm19.5g
Syringe barrels for thermally conductive adhesives

Cartridges

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
100cc012102Transparent191.5mm31.8mm37.1mm48g
200cc012601Transparent230.9mm40mm44.4mm61.6g
300cc
large diameter		012901Transparent200.5mm49.9mm54.5mm68g

Two-Component Cartridges

50ml 1:1
( 1st Generation)		50ml 1:1
( 2st Generation)		200ml 1:1400ml 1:1
net weight19.1g18g84.8g122.3g
materialPPPPPPPP
density0.905g/cm³0.905g/cm³0.905g/cm³0.905g/cm³
capacity50ml50ml200ml400ml
total height116.4mm123.6mm189.6mm225mm
length of syringe99.8mm104.2mm147.2mm183mm
inner diameterΦ19.2mmΦ18.7mmΦ33.3mmΦ39.3mm
outer diameterΦ21.8mmΦ20.8mmΦ37.3mmΦ43.6mm
thickness1.2mm1mm2mm2.1mm
pressure resistance6kg6kg6kg6kg
Two-Component Cartridges

Instant Adhesives

Syringe barrels for Instant Adhesives

Instant adhesives are usually low viscosity, cure fastly at ambient temperature. Requirements are that the syringe seal is very good and that the syringe does not react with the adhesive.

Product advantage

  • Advantage One: There are special pistons and fittings closely matched with the syringe to ensure good sealing.
  • Advantage Two: Our products are made of PP and PE materials, which have good chemical resistancegun and washing to ensure the cleanliness of the syringe.

US Type I Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc010101Transparent73.8mm9.6mm11.6mm2.6g
5cc010201Transparent69.8mm12.5mm14.9mm3.6g
10cc010301Transparent90.7mm15.7mm18.6mm6.3g
30cc010401Transparent117.8mm22.5mm25.7mm12.9g
55cc012201Transparent177.3mm22.3mm25.7mm20g

US Type II Syringe barrels

ModelMaterial No.ColorLengthInner diameterOuter diameterWeight
3cc-B010501Transparent74.2mm9.4mm11.6mm2.7g
5cc-B010601Transparent70.2mm12.5mm14.6mm3.1g
10cc-B010701Transparent91.4mm15.6mm18.5mm6.2g
30cc-B010801Transparent118.5mm22.3mm25.1mm10.8g
50cc-B012401Transparent176mm22.3mm25.6mm19g
55cc-B010901Transparent183.4mm22.3mm25.6mm19.5g
US Type I Syringe barrels
