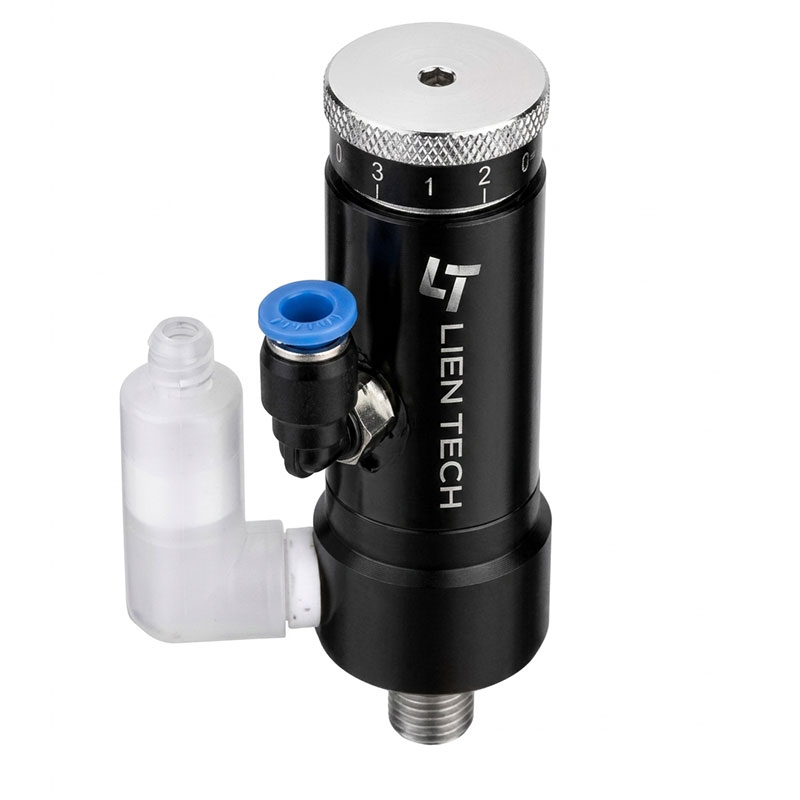

The LIEN TECH AN-300N Diaphragm Valve delivers precise and repeatable dispensing for low to medium viscosity fluids. Optimized for fast-curing adhesives, it ensures stable performance and reliable operation in automated systems.
Anaerobic Adhesives | Cyanoacrylates | UV Adhesives | Oils & Lubricants | Solvents
Model | AN-300N |
Operation Method | Single-acting Air Control |
Max Fluid Pressure | 7.0 bar |
Operating Air Pressure | 4.8 – 6.2 bar |
Inlet Port | 1/8″ NPT (Female Thread) |
Outlet Port | Luer Lock Type (with Retaining Nut) |
Mounting | M5 Female Thread or Dedicated Mounting Block |
Speed | Up to 400 cycles / min |
Applicable Viscosity | 1 – 500,000 cps |
Cylinder Body | Anodized Aluminum |
Piston | 303 Stainless Steel (SUS303) |
Fluid Path (Wetted Part) | PTFE (Teflon) |
Diaphragm | UHMW (Ultra-High-Molecular-Weight Polyethylene) |
Dimensions | 82mm (L) x 27mm (D) |
Weight | 0.25kg |

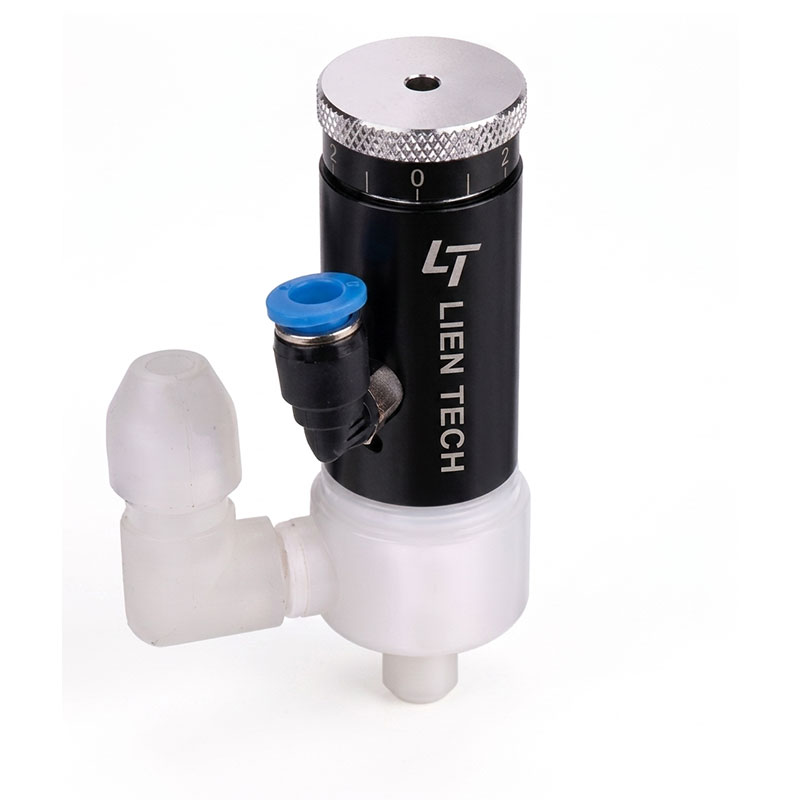

The AN-300T Diaphragm Valve is designed for precise and stable dispensing of low to medium viscosity fluids, including anaerobic and cyanoacrylate adhesives.
Engineered with UHMW wetted parts, it minimizes adhesion and prevents clogging, ensuring reliable performance in demanding applications.
Anaerobic Adhesives | Cyanoacrylates | UV Adhesives | Oils & Lubricants | Solvents
Model | AN-300T |
Operation Method | Single-acting Air Control |
Max Fluid Pressure | 7.0 bar |
Operating Air Pressure | 4.8 – 6.2 bar |
Inlet Port | 1/8″ NPT (Female Thread) |
Outlet Port | Luer Lock Type (with Retaining Nut) |
Mounting | M5 Female Thread or Dedicated Mounting Block |
Speed | Up to 400 cycles / min |
Applicable Viscosity | 1 – 50,000 cps |
Cylinder Body | Anodized Aluminum |
Piston | 303 Stainless Steel (SUS303) |
Fluid Path (Wetted Part) | UHMW Polyethylene |
Diaphragm | UHMW (Ultra-High-Molecular-Weight Polyethylene) |
Dimensions | 82mm (L) x 27mm (D) |
Weight | 0.25kg |
