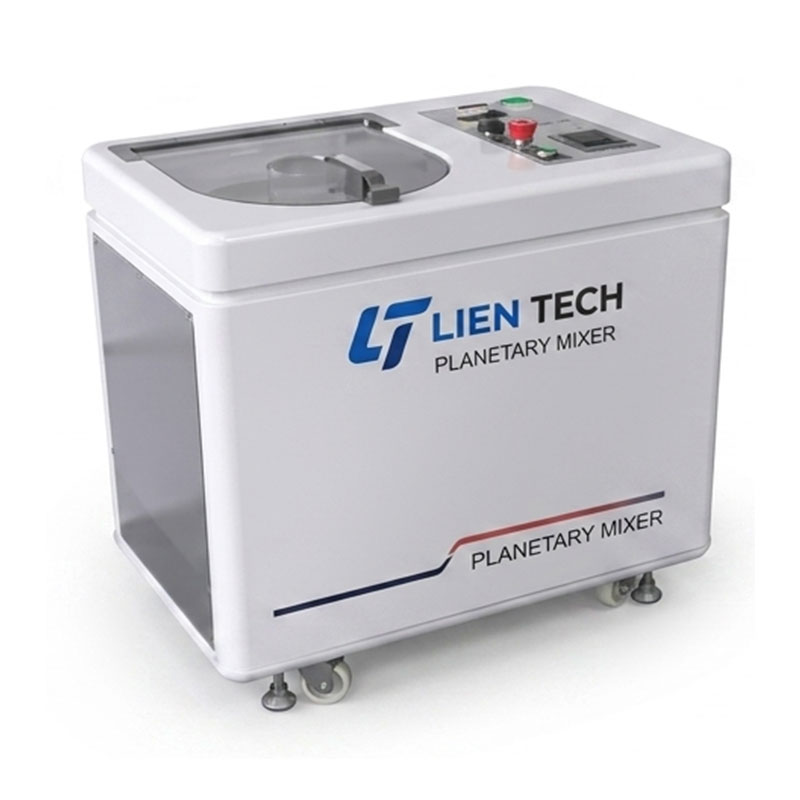

Planetary Mixer

Planetary Mixer LTPM-150H / LTPM-500H

Planetary Mixer (De-aeration & High Torque)

Vacuum De-foaming: Many planetary systems are integrated with vacuum functions, making them the industry standard for removing micro-bubbles (de-aeration).

High-Viscosity Handling: The mechanical shear force generated by planetary movement is perfect for thick, paste-like materials (e.g., silver paste, sealants, or battery slurries).

Uniform Dispersion: Excellent for breaking down agglomerates in powder-to-liquid mixing.

Features & Benefits

Typical Fluids

Lithium Battery | Silver Paste | Thermal Conductive Adhesives | Silicone

Enquire Now

Specification

*Item*	*LTPM-150H*	*LTPM-500H*
	High Speed Plantery Mixer
Container Capacity	350mL ×1	1,000mL ×1
Max Processing Capacity	150mL / 150g	500mL / 500g
Revolution Speed	130~3,600 RPM	130~2,700 RPM
Rotation Ratio	Invariable	Invariable
Vacuum (Optional)	7.2 m³/h, -99 kPa	20 m³/h, -100 kPa
Power / Voltage	1.5 kW, 220V	2.3 kW, 220V
Power Supply	Single-phase AC 220V, 50Hz
Dimension (mm)	L585 × W405 × H600	L700 × W500 × H770
Weight (kg)	80	115

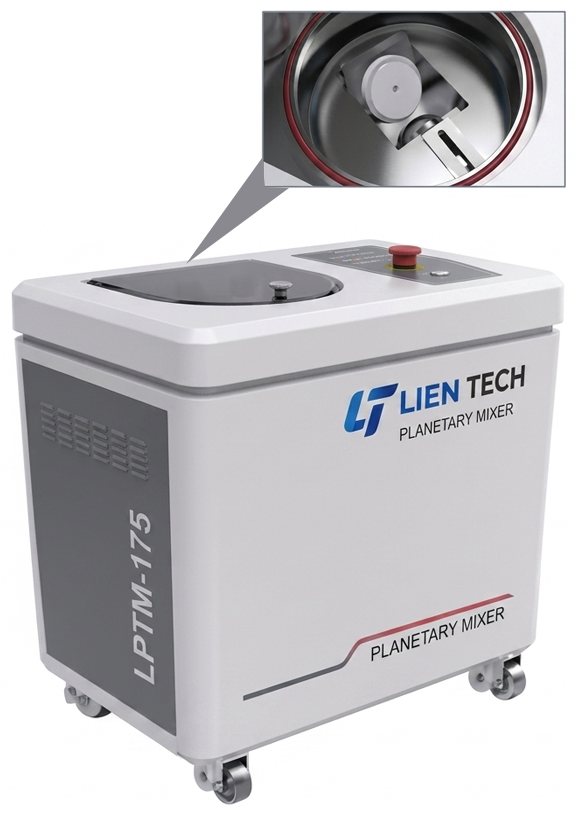

Planetary Mixer LTPM-175 / LTPM-175E / LTPM-350E

LPTM-175

LIEN TECH High-Speed Planetary Mixer Series

Designed for high-performance mixing and de-aeration, this series delivers fast, uniform dispersion and efficient air removal across a wide range of materials.

From standard processing to explosion-proof environments, each model is engineered to ensure reliable performance, process stability, and flexibility.

Features & Benefits

LTPM-175
A compact and efficient solution designed for small to mid-scale applications, supporting syringe-based degassing up to 55cc.
👉 Ideal for: Lab / R&D / Small batch production / Precision material preparation
LTPM-175E-TWIN
A dual-drive, explosion-proof model offering enhanced safety and higher processing efficiency.
👉 Key focus: Explosion-proof compatibility / Optional air-cooling system / Dual container processing (×2)
LTPM-350E-TWIN
A high-capacity dual-drive system designed for larger volume processing and industrial applications.
👉 Key focus: Larger batch capability (700 ml ×2) / Stronger output and stability / Suitable for heavy and high-density materials

Enquire Now

Specification

*Item*	*LTPM-175*	*LTPM-175E-TWIN*	*LPTM-350E-TWIN*
	Compatiable with syringes up to 55cc for degassing.	Explosion-proof and air-cooling optional.
Container Capacity	350mL ×1	350mL ×2	700mL ×2
Max Processing Capacity	175mL / 200g	175mL ×2 / 350g ×2	350mL ×2 / 700g ×2
Revolution Speed	130~2,500 RPM	130~3,000 RPM	130~3,000 RPM
Rotation Ratio	Invariable	Adjustable (Dual Motor Drive)	Adjustable (Dual Motor Drive)
Vacuum (Optional)	7.2 m³/h, -99 kPa	20 m³/h, -100 kPa	20 m³/h, -100 kPa
Power / Voltage	1.5 kW, 220V	1.75 kW, 220V	2.0 kW, 220V
Power Supply	Single-phase AC 220V, 50Hz
Dimension (mm)	L585 × W405 × H650	L730 × W510 × H790	L730 × W510 × H790
Weight (kg)	80	125	130
