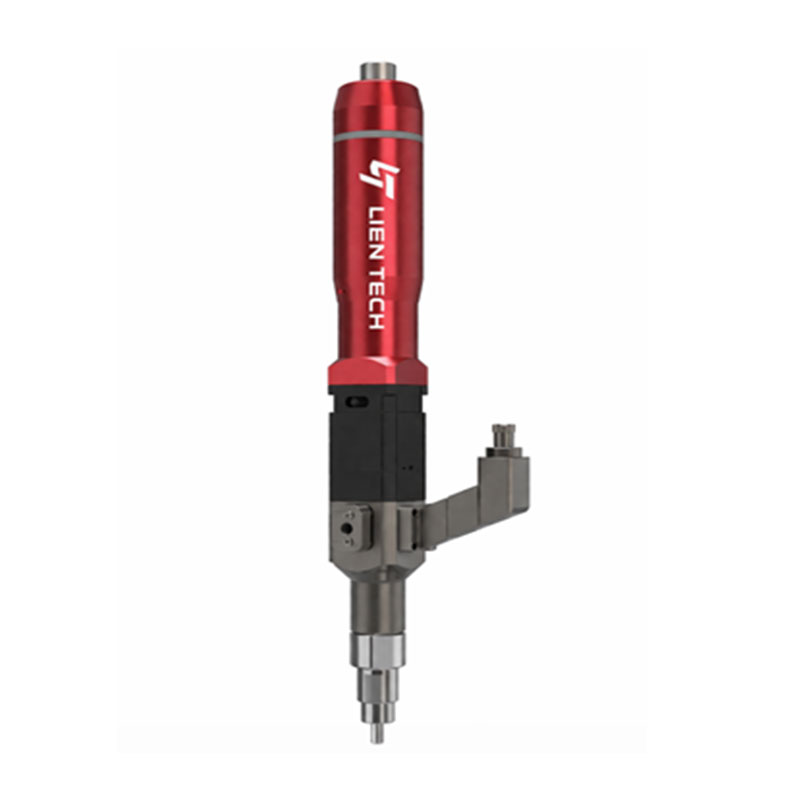

AP series of single-component dispensing valves and two-component mixing valves are suitable for dispensing a wide range of fluids and pastes (Conductive epoxy resins, MMA, silicone, acrylic, polyurethane, UV adhesives, adhesives, sealants, coating materials, etc.)
Mobile phones, PCBA, speakers, motors, LEDs, and other related industries.
Model | AP 1 | AP 2 | AP 3 | AP 4 | AP 5 |
Displacement (ml/rev) | 0.5 | 0.15 | 0.05 | 0.015 | 0.005 |
Min Dispense (ml) | 0.025 | 0.0075 | 0.0025 | 0.00075 | 0.00025 |
Max Flow (ml/min) | 50 | 15 | 5 | 1.5 | 0.5 |
Dimensions (mm) | 31 × 31 × 309 | 31 × 31 × 260 | |||
Weight (kg) | 0.8 | 0.7 | |||
Max Speed (rpm) | 100 RPM | ||||
Max Inlet Pressure (bar) | 6 bar | ||||
Max Outlet Pressure (bar) | 20 bar | ||||
Dispensing Accuracy | ±1% | ||||
Rotor Material | Stainless Steel | ||||
Seal Material | FKM / FFKM | ||||
Body Material | Hard Alloy | ||||
Inlet Port | G1/4″ Female | ||||
Outlet Port | Luer Lock | ||||
Drive Method | Maxon DC Motor | ||||
Operating Temp (°C) | 10 ~ 80°C | ||||

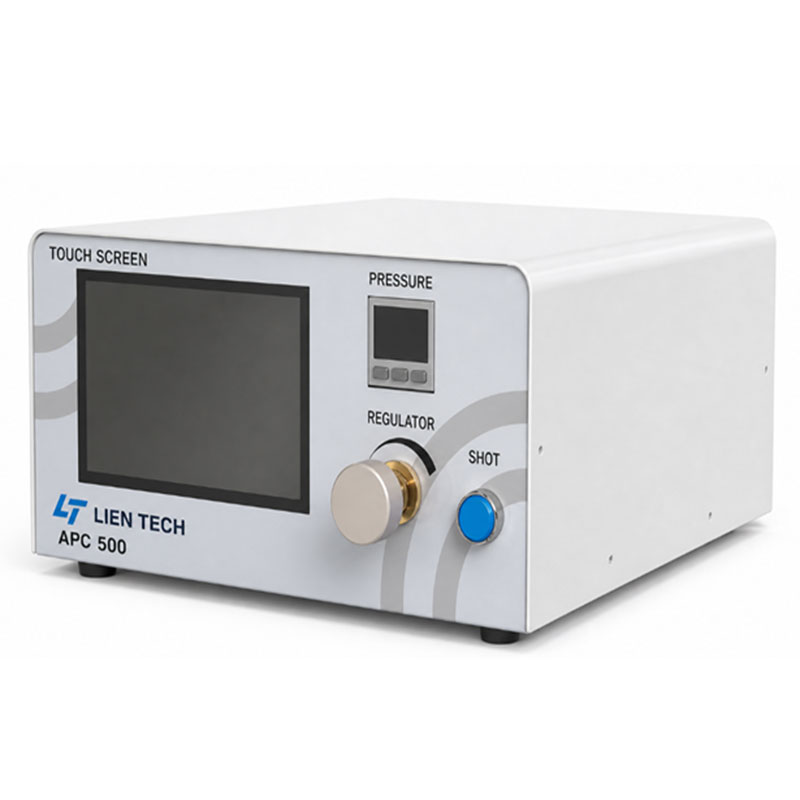

Freely adjustable dispensing volume, dispensing time, interval dispensing, and suction (anti-drip) function.
Item | Specification |
Control Object | AP1 ~ AP5 |
Dimensions (WxDxH mm) | 270 × 255 × 120 |
Weight (kg) | 4.3 |
Power Supply | AC 220V, 50/60Hz |
Touch Screen | 5 inch |
External Interface | Start Signal |
Input I/O | Recipe 1/2/3/4, Alarm |
Output I/O | Dispensing Complete, Alarm |
Communication Interface | Ethernet (TCP) |
Interface Language | English, French, Chinese |
Control Mode | Administrator |
Operating Temperature (°C) | 10 ~ 40 |
