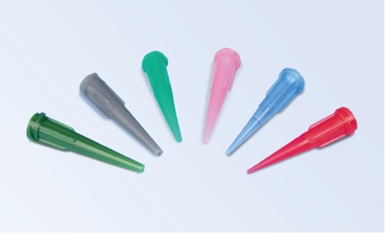

TT Tapered Dispense Tips

Application / Applicable fluids	Tapered needles	Stainless steel precision needles	Teflon needles	Flex needles
Application
Extremely low viscosity fluids	×	●	●	●
Granular Solder Paste	●	●	▲	×
Precision microdot	×	●	▲	●
Corrosive metal fluids	●	×	●	●
Gluing of depressions	▲	●	●	▲
Coated specimens	●	▲	●	▲
Quick-drying adhesive	●	▲	●	●
Scribing	●	●	▲	▲
Scratch-prone substrates	●	▲	●	●

Applicable fluids
Adhesives	●	●	●	●
Anaerobic adhesives	●	▲	●	▲
Coating materials	●	▲	▲	×
Instant Adhesives	●	▲	●	●
High Viscosity Instant Adhesives	●	▲	▲	▲
Epoxy resins	●	●	●	×
Grease	●	●	●	×
Low Viscosity Adhesives	●	▲	▲	×
Oils	●	●	●	▲
Paints	●	●	●	×
Sealants	●	▲	▲	×
Silver Paste	▲	▲	×	×
Solder Paste/Copper Paste	●	●	▲	×
Solder Paste	●	●	▲	×
Solvent	×	●	●	●
UV Adhesive	●	▲	▲	▲

Remark: ● Recommended ▲ Applicable × Not applicable

We use high purity imported materials in all of our production processes, products are made by advanced non-release agent production processes. The needles are environmentally friendly and are especially suitable for factories with high cleanliness requirements.

Double screw port interface design, can be easily connected to the syringe, ensures proper operation under 6 kg pressure, no burrs on the glue outlet to ensure smooth dispensing and no glue dragging phenomenon.

The appropriate hardness of needle tip, can make the dispensing process clear and precise, but also no worries of scratching to fragile workpiece.

The 0.3mm thickness design can help achieve the most accurate positioning in the dispensing process.

Wear-resistant materials made of needles can effectively extend the operation life of the needle. If you have special requirements for the color of the needles or other parts, we can customize them for you.

Specification	Color	Inner diameter	Outer diameter	Material No.
14G	🫒 Olive	1.55mm	2.20mm	JD514
16G	🔘 Gray	1.20mm	1.80mm	JD516
18G	🟢 Green	0.84mm	1.30mm	JD518
20G	🌸 Pink	0.61mm	1.10mm	JD520
22G	🔵 Blue	0.41mm	0.90mm	JD522
25G	🔴 Red	0.25mm	0.75mm	JD525
27G	🧱 Deep red	0.20mm	0.80mm	JD527

Plastic Tips & Stainless Steel Tips

Plastic Mounted Stainless Steel Dispense Tips

High-precision stainless steel tube, after advanced processing for internal and external precision polishing, and then after more than 3 times of ultrasonic cleaning, completely eliminated burrs, and completely clean the inside of the needle, never contaminate the glue. The insertion part of the syringe uses advanced infiltration process, coupled with high-strength UV adhesive, ensures that the connection part of the syringe will never fall off.The large flat surface screw-in design, coupled with a precise fit with the syringe, the dispensing process is easy and fast, ensures absolute safety under the pressure of 6 kilograms. The special base material is able to shield the UV rays, ensuring that the expensive UV adhesive is not wasted in the needle during the production process.

Features and Advantages

Specification	Color	Inner Diameter	Outer Diameter	6.35mm	12.7mm	25.4mm	38.1mm
14G	🫒 Olive	1.54mm	1.83mm	JD714025	JD714050	JD714100	JD714150
15G	🪵 Amber	1.36mm	1.65mm	JD715025	JD715050	JD715100	JD715150
16G	🔘 Dark gray	1.20mm	1.65mm	JD716025	JD716050	JD716100	JD716150
17G	🟤 Brown	1.04mm	1.50mm	JD717025	JD717050	JD717100	JD717150
18G	🟢 Green	0.84mm	1.27mm	JD718025	JD718050	JD718100	JD718150
19G	🟤 brown	0.80mm	1.07mm	JD719025	JD719050	JD719100	JD719150
20G	🌸 pink	0.61mm	0.91mm	JD720025	JD720050	JD720100	JD720150
21G	🟣 Purple	0.51mm	0.82mm	JD721025	JD721050	JD721100	JD721150
22G	🔵 Blue	0.41mm	0.72mm	JD722025	JD722050	JD722100	JD722150
23G	🟠 Orange	0.33mm	0.65mm	JD723025	JD723050	JD723100	JD723150
25G	🔴 Red	0.25mm	0.52mm	JD725025	JD725050	JD725100	JD725150
26G	⚪ Beige	0.23mm	0.45mm	JD726025	JD726050	n/a	n/a
27G	🫧 Transparent	0.20mm	0.42mm	JD727025	JD727050	n/a	n/a
28G	⚪ Cream White	0.18mm	0.36mm	JD728025	JD728050	n/a	n/a
30G	🟣 lilac	0.15mm	0.31mm	JD730025	JD730050	n/a	n/a
32G	🟡 yellow	0.10mm	0.24mm	JD732025	JD732050	n/a	n/a
34G	🧪 Snow Blue	0.06mm	0.19mm	JD734025	n/a	n/a	n/a

Plastic Mounted Stainless Steel Dispense Tips

Features and Advantages

Specification	Inner diameter	Outer diameter	12.7mm	25.4mm
10G	2.9mm	3.4mm	JD10-13	JD10-25
11G	2.65mm	3.06mm	JD11-13	JD11-25
12G	2.27mm	2.77mm	JD12-13	JD12-25
13G	1.94mm	2.4mm	JD13-13	JD13-25
14G	1.64mm	2.1mm	JD14-13	JD14-25
15G	1.43mm	1.83mm	JD15-13	JD15-25
16G	1.25mm	1.65mm	JD16-13	JD16-25
17G	1.11mm	1.49mm	JD17-13	JD17-25
18G	0.84mm	1.28mm	JD18-13	JD18-25
19G	0.72mm	1.08mm	JD19-13	JD19-25
20G	0.61mm	0.91mm	JD20-13	JD20-25
21G	0.52mm	0.82mm	JD21-13	JD21-25
22G	0.42mm	0.72mm	JD22-13	JD22-25
23G	0.34mm	0.64mm	JD23-13	JD23-25
24G	0.31mm	0.57mm	JD24-13	JD24-25
25G	0.26mm	0.52mm	JD25-13	JD25-25
26G	0.25mm	0.46mm	JD26-13	JD26-25
27G	0.21mm	0.42mm	JD27-13	JD27-25
28G	0.18mm	0.36mm	JD28-13	JD28-25
30G	0.14mm	0.32mm	JD30-13	JD30-25

PP Flexible Tips

Features and Advantages

Specification	Color	Inner diameter	Outer diameter	Material No.
14G	olive	1.55mm	2.10mm	JD614050
15G	Amber	1.30mm	1.80mm	JD615050
18G	Green	0.84mm	1.27mm	JD618050
20G	pink	0.60mm	0.91mm	JD620050
22G	blue	0.40mm	0.81mm	JD622050
25G	red	0.35mm	0.51mm	JD625050

Teflon precision Dispense Tips/Lined Tips

Features and Advantages

Specification	Color	Inner diameter	Material No.
20G	gray	0.6mm	JDTF20050
25G	pink	0.4mm	JDTF25050
27G	red	0.2mm	JDTF27050

TT Tapered Dispense Tips
