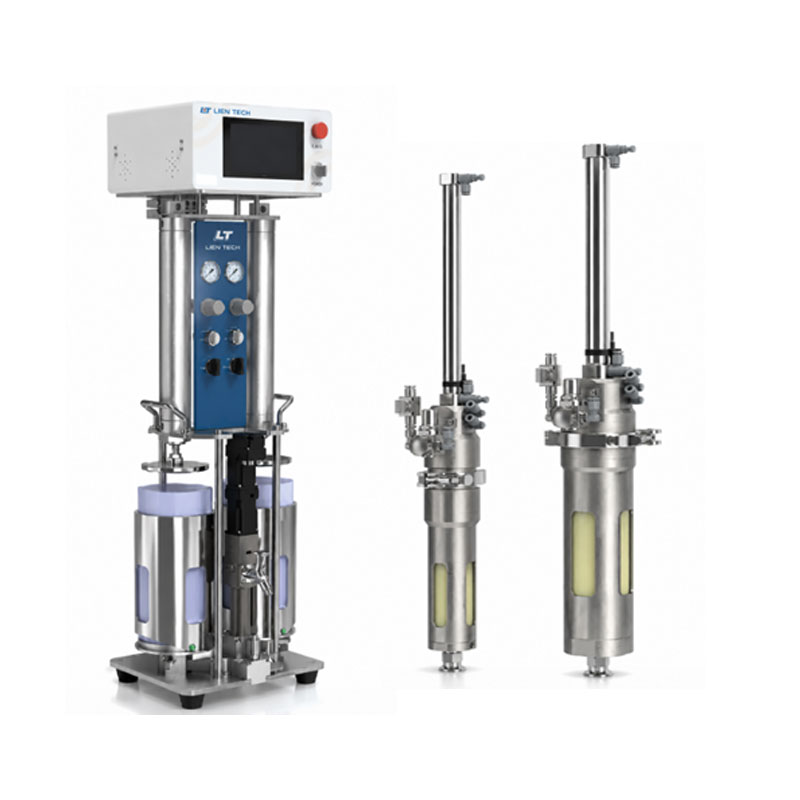

Material Feeding System NSP (Non-Stop Production)

NSP (Non-Stop Production) Series.

Designed for uninterrupted material supply during cartridge or container replacement.

Equipped with a progressive cavitiy pump and pressure control system for stable transfer of high-viscosity materials.
Low-shear and low-pressure transfer system effectively protects material properties.
Supports standard material packages of 300 / 310 / 330ml, 600ml, and 2600ml.
Quick-change structure design enables fast and convenient material replacement.
Continuous material supply without production interruption with automatic dual-cylinder switching.

*Item*	*NSP-300*	*NSP-600*	*NSP-2600*
Applicable Cartridge Capacity (ml)	300 / 310 / 330	600	2600
Transfer Pump Type	Progressive Cavity Pump
Applicable Viscosity Range	0 ~ 600,000 mPa·s
Max Flow Rate	300 ml/min
Max Output Pressure	20 bar
Rotor Material	Ceramic
Stator Material	FKM / FFKM / EPDM / PU
Pump Body Material	Tungsten Carbide Alloy
Outlet Port Specification	G1/2 Female Thread / KF16
Driving Method	Precision Servo Motor + Gear Reducer
Operating Temperature	10 ~ 45 ℃
Dimensions (W × D × H)	320 × 220 × 1070 mm
Weight	20 kg
Power Supply	AC220V~50Hz, 300W
Standard Features	ü7” Touchscreen Interface / I/O Communication üLow-Level Monitoring / Dual-Cylinder Monitoring üModbus TCP Data Communication üRemote Control via Modbus TCP
