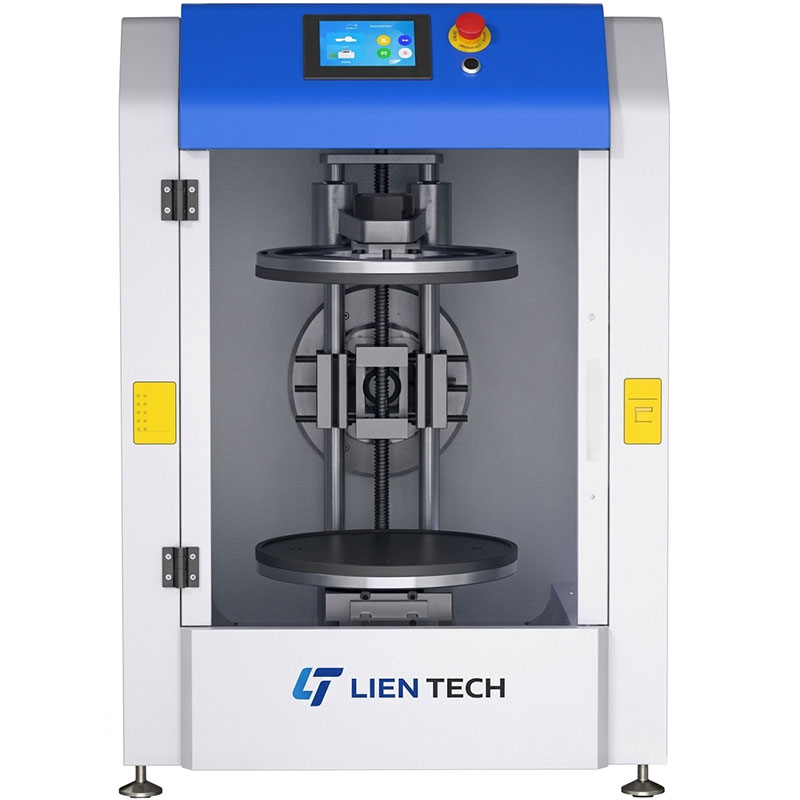

The H-84 features a fully automatic clamping system combined with an intelligent control interface, enabling efficient and reliable operation across various materials and container types.
High Filler compound | Silicone | Epoxy | PUR | Any adhesives
Category | Parameter | Specification |
Mixing System | Mixing Type | Gyroscopic (Dual-Axis 3D Rotation) |
Clamping System | Fully Automatic | |
Mixing Direction | Single / Bi-Directional | |
Mixing Time | Up 2hours(Customizable) | |
Performance | Speed (Large Can) | 50 ~ 100 rpm (Height ≥ 220 mm) |
Speed (Small Can) | 50 ~ 150 rpm (Height < 220 mm) | |
Max Load | 35 kg | |
Can Capacity | Compatible Shapes | Round / Square |
Height Range | 95 ~ 480 mm | |
Max Diameter | 385 mm | |
Language | Interface | French / Italian / English / Korean Chinese / Vietnam |
Power | Power Supply | Single Phase 110V / 210~230V (±10%) |
Frequency / Power | 50/60 Hz / 750W, 1100W | |
Dimensions | Machine Size | 920(L) × 820(W) × 1160(H) mm |
Weight | Net / Gross | 240 kg / 270 kg |
Compliance | Certification | CE Certified |
