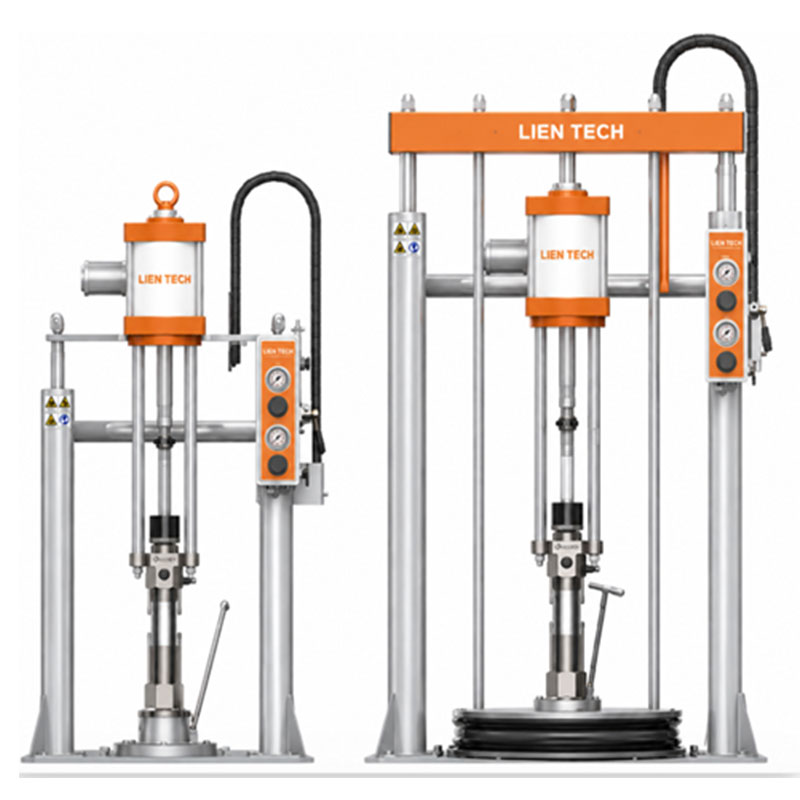

The CP Series Piston Can Pump delivers reliable and stable material feeding performance for high-viscosity applications.
With strong pressure capability and smooth material transfer technology, it enables efficient handling of difficult fluids while improving production stability and process efficiency.
| Product Name | CP-05 gallon | CP-55 gallon |
| Fluid Viscosity (cp) | 10,000 ~ 1,000,000 | |
Cylinder / Piston Rod Material | Carbon Steel (Nickel Plating) | |
| Air Motor Volume (cc) | 5900 | |
| Lower Cylinder Volume (cc) | 250 | |
| Pump Ratio | 49 : 1 (Option 61:1) | |
| Max Working Pressure (psi) | 4900 | |
| Ram Size (in) | 3 | |
| Fluid Outlet | 1 NPT (F) | |
| Oil Cup | Open Oil Cup | |
| Throat Seal | V-Package | |
