The H-300cc Hot Melt Screw Valve is designed for high-volume, high-viscosity dispensing applications, delivering exceptional accuracy and stability.
Powered by a high-performance brushless servo motor and equipped with a Tungsten carbide screw, it ensures reliable, long-life operation even under continuous, high-load production conditions.
PUR Hot Melt | PUH Hot Melt | High-Temperature Adhesives | High-Viscosity Industrial Adhesives
Item | Specification |
Dispensing Method | Contact Dispensing |
Applicable Fluids | PUR / PUH / Hot Melt Adhesives |
Viscosity Range | 10,000 ~ 200,000 cps |
Max Speed | Up to 400 rpm |
Supply Pressure | 0.01 ~ 0.2 MPa |
Temperature | Valve Max: 200°C / Material Max: 150°C |
Material Capacity | 1000 g |
Dimensions | L160 × W75 × H335 mm |

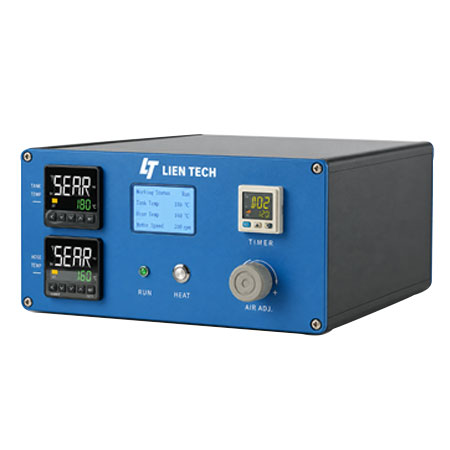

Item | Specification |
Control Method | Digital Control |
Power Supply | AC220V / 50Hz / 120W |
Weight | 2 kg |
Dimensions | L280 × W240 × H120 mm |
