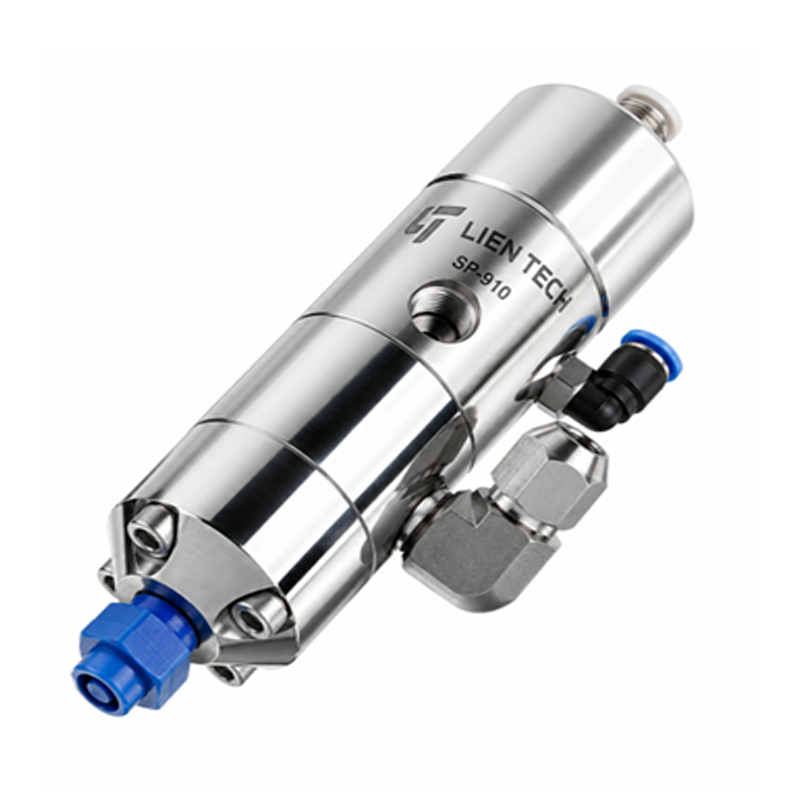

The SP-910 Dispensing Valve is engineered for precise dispensing of high-viscosity materials, delivering accurate and consistent high-volume output.
With its unique stainless steel balanced shaft design, it ensures stable flow control for demanding applications such as sealants, lubricants, and silicone.
Grease | Silicone | Sealants
Model | SP-910 (Spool Valve) |
Operation Method | Dual-acting Air Control |
Max Fluid Pressure | 35.0 bar |
Operating Air Pressure | 4.8 – 6.2 bar |
Inlet Port | 1/4″ NPT (Female Thread) |
Outlet Port | 1/4″ NPT (Female Thread) |
Mounting | M6 Femable Thread |
Speed | Up to 600 cycles / min |
Applicable Viscosity | 1 – 500,000 cps |
Cylinder Body | 303 Stainless Steel (SUS303) |
Spool | 303 Stainless Steel (SUS303) |
Fluid Path (Wetted Part) | 303 Stainless Steel (SUS303) |
Needle Adapter | 303 Stainless Steel (SUS303) |
Dimensions | 152mm (L) x 35mm (D) |
Weight | 0.62kg |
LTV9200 is a high-performance 2K dispensing valve designed for precise and reliable dispensing of two-component materials.
Its independent A/B fluid paths keep both components completely separated inside the valve and allow mixing only at the outlet through a static mixer.
The integrated suck-back function provides clean shut-off, minimizing dripping and stringing after dispensing.
With its robust design and precise fluid control, the LTV9200 is ideal for 2K epoxy, silicone, polyurethane, and acrylate applications requiring consistent and repeatable dispensing.
Epoxy | Silicone | PUR
| Item | Specification |
|---|---|
| Model | LTV9200 |
| Max. Fluid Pressure | 40 bar |
| Applicable Viscosity | 1–50,000 cps |
| Actuation Air Pressure | 4.8–6.2 bar |
| Max. Cycle Rate | 400 cycles/min |
| Fluid Inlet | 1/4″ NPT Female |
| Dimensions | Ø63 × 160 mm |
| Weight | 1,540 g |
| Fluid Body | SUS303 |
| Seals | PTFE / Viton |
