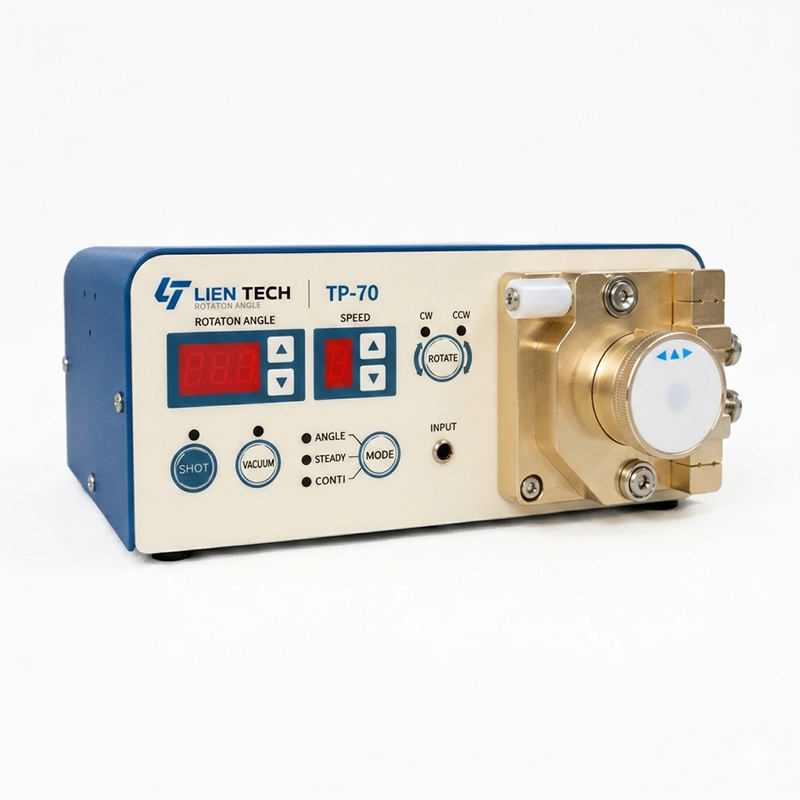

TP-70 Tubing Pump

TP-70 Tubing Pump

TP-70 Tubing Pump

Features & Benefits

  • Optimized for Anaerobic Adhesives
    Ideal for precise dispensing of anaerobic sealants, instant adhesives, inks, and low-viscosity fluids.
  • Stable Air-Free Dispensing
    No compressed air required — simple, clean, and stable operation.
  • Long Tube Life & High Accuracy
    Rolling-contact mechanism reduces friction for consistent dispensing and extended tubing life.
  • Compact & Low Maintenance
    Simple structure designed for easy maintenance and reliable industrial use.
Enquire Now

Specification

TP-70

Mode

Rotation Angle Type / Manual Mode

Min Dot

0.0001 cc (Φ0.3 ~ Φ0.8)

Speed

0 ~ 160 RPM

Time / Gelatinize Rolling

0 ~ 999°

Rolling / Back Rolling

1 ~ 9999°

Viscosity

0 ~ 5,000 cps

Dimension (mm)

177W × 169.5D × 83H

Voltage

AC220V / 110V, 50/60Hz

Weight

3.5 KG

TP-70 Tubing Pump
