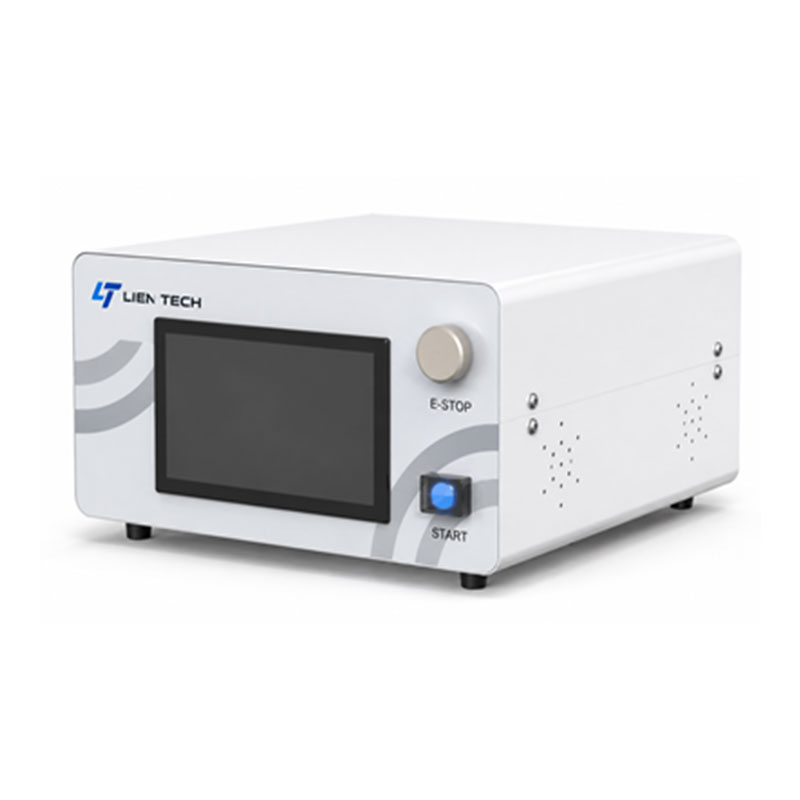

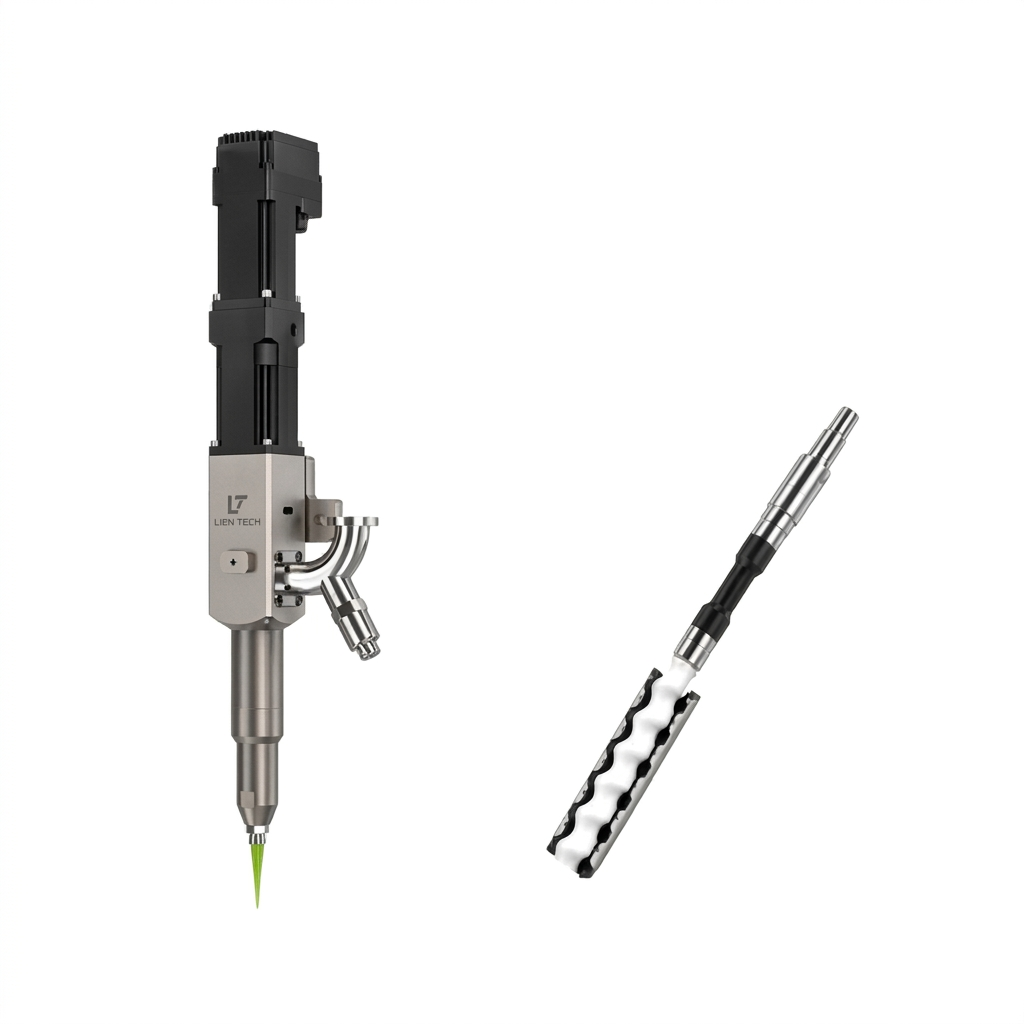

Automotive Application AP Pro Series 1K

AP Pro-125

AP Pro-350

AP Pro-1000

AP Pro-1800

AP Pro-5000

Dimensions

(W×D×H, mm)

42.6 × 66 × 390

42.6 × 66

× 410

42.6 × 66 × 450

Weight (kg)

1.8

2.0

2.5

Dispense

Volume /

Revolution (ml/r)

0.125cc

0.35cc

1.0cc

1.8cc

5.0cc

Minimum

Dispense

Volume (ml)

0.01cc

0.03cc

0.08cc

0.15cc

0.4cc

Max Flow Rate

(ml/min)

15cc

42cc

120cc

216cc

600cc

Max Speed

(rpm)

120 RPM

Applicable Viscosity (mPa·s)

0 ~ 800,000 mPa.s

Max Inlet

Pressure (bar)

6 bar

Max Outlet

Pressure (bar)

20 bar

Dispensing

Accuracy

±1%

Rotor Material

Ceramic

Stator Material

FKM / FFKM / EPDM / PU

Housing Material

Hard Alloy / Stainless Steel

Inlet Port

G1/2 Female / KF16

Outlet Port

G1/4 Female / Luer Connector

Drive System

Servo Motor + Reducer

Operating Temperature (°C)

10 ~ 45 (°C)

Optional Function

Inlet Pressure Monitoring
