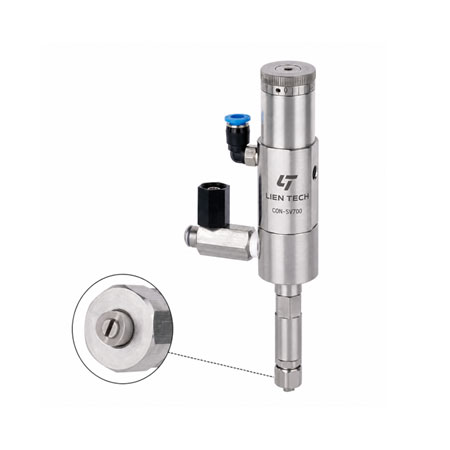

The CON-SV700 is a high-performance conformal coating valve designed for precise, uniform, and non-misting application of protective coatings on PCBs and electronic components.
Featuring a square spray nozzle and optimized flow control structure, it ensures stable coating performance even at low flow rates, delivering clean edges and consistent film thickness across large areas.
Conformal Coating Materials | Silicone | Acrylic | UV
Item | Specification |
Control Method | Single Pneumatic Control |
Valve Type | Conformal Coating Valve |
Dimensions | 212 × 27 mm |
Weight | Approx. 0.3 kg |
Operating Air Pressure | 1.8 ~ 6.2 bar |
Max Fluid Pressure | 7.0 bar |
Recommended Viscosity | Up to 500,000 cps |
Fluid Inlet | 1/8 NPT |
Nozzle Type | Stainless Steel Square Nozzle |
Mounting | M6 Thread or Dedicated Bracket |
Wetted Parts | SUS 303 Stainless Steel |
